Genotype Heatmap with Optional Barplots

Creates a heatmap visualization of biallelic genotypes (e.g., SNPs, variants) with split-tile representation showing phased or unphased alleles. Each tile is divided diagonally to display both alleles, with border color indicating phasing status (black for phased, white for unphased). Optional barplots can be added to display associated numeric data.

Usage

gg_geno(
  data,
  id = "id",
  geno = "_geno",
  bar_column = NULL,
  bar_fill = NULL,
  panel_ratio = 0.3,
  tile_fill = NULL,
  tile_width = 0.7,
  tile_height = 0.7,
  border_width = 0.5,
  text_size = 10,
  show_legend = TRUE,
  quiet = FALSE
)

Arguments

data: A data frame containing the data to visualize.
id: Character string specifying the column name in data that contains sample identifiers. Default is "id".
geno: Character string specifying the regular expression pattern that identifies genotype columns (e.g., "_geno$" to match columns like rs123_geno, rs456_geno). The pattern is removed to create SNP labels. Default is "_geno".
bar_column: Character vector specifying column name(s) in data to display as horizontal barplot(s) to the right of the heatmap. Columns must be numeric. Default is NULL (no barplots).
bar_fill: Character vector specifying the fill color(s) for bars. When bar_column contains multiple elements, colors are recycled if necessary to match the number of bars. If NULL (default), uses colors from the Brewer "Paired" palette.
panel_ratio: Numeric value specifying the total relative width of the barplot panel(s) compared to the heatmap panel (which has a reference width of 1). When multiple bar_column values are provided, this width is divided equally among them. For example, panel_ratio = 0.3 creates a 1:0.3 width ratio between heatmap and barplot panels. Only used when bar_column is not NULL. Default is 0.3.
tile_fill: Named character vector of colors for criterion values (e.g., c(Pass = "green", Fail = "red")). If NULL (default), uses the Brewer "Paired" palette.
tile_width: Numeric value (0-1) specifying the width of tiles as a proportion of available space. Default is 0.7.
tile_height: Numeric value (0-1) specifying the height of tiles as a proportion of available space. Default is 0.7.
border_width: Numeric value specifying the width of tile borders. Default is 0.5.
text_size: Numeric value specifying the size of axis text. Default is 8.
show_legend: Logical indicating whether to show the fill legend. Default is TRUE.
quiet: Logical indicating whether to suppress messages. Default is FALSE.

Value

A ggplot2 object (or patchwork object if bar_column is specified). The plot displays:

Split tiles representing biallelic genotypes
Top-left triangle: first allele
Bottom-right triangle: second allele
Black borders: phased genotypes (separator: |)
White borders: unphased genotypes (separator: /)
Optional barplots showing numeric data for each sample
Color legend mapping alleles to colors

The returned object has an attribute "recommended_dims" containing suggested plot width and height in inches.

Details

The function expects genotype data in wide format with:

One column for sample IDs (specified by id)
Multiple columns matching the geno pattern, each representing a SNP/variant
Genotypes encoded as "allele1/allele2" (unphased) or "allele1|allele2" (phased)

Genotype format examples:

Unphased: "0/0", "0/1", "1/1"
Phased: "0|0", "0|1", "1|0"

Each genotype tile is split diagonally with the first allele in the top-left triangle and the second allele in the bottom-right triangle. The border color indicates phasing: black borders for phased genotypes (|) and white borders for unphased genotypes (/).

When bar_column is specified, the function requires the patchwork package to combine the heatmap with barplots. Barplots are added to the right of the heatmap and display numeric values with text labels.

WARNING: Alignment between heatmap and barplots depends on plot dimensions. The function provides recommended dimensions (accessible via attr(plot, "recommended_dims")) that ensure proper alignment. You can adjust these dimensions to improve appearance (e.g., reduce width to tighten spacing, or scale proportionally for size) while maintaining alignment.

Examples

# Create example SNP and phenotype data
set.seed(123)

snp_data <- data.frame(
  id = paste0("P", sprintf("%03d", 1:12)),
  # SNP columns
  rs1234_geno = sample(c(c("0/0", "0/1", "1/1"), NA),
                       12, replace = TRUE,
                       prob = c(0.4, 0.4, 0.15, 0.05)),
  rs5678_geno = sample(c("0/0", "0/1", "0/2", "1/1", "1/2", "2/2", NA),
                       12, replace = TRUE,
                       prob = c(0.25, 0.25, 0.1, 0.15, 0.15, 0.05, 0.05)),
  rs9012_geno = sample(c(c("0|0", "0|1", "1|1", "0/1", "1/2"), NA),
                       12, replace = TRUE,
                       prob = c(0.2, 0.2, 0.15, 0.2, 0.15, 0.1)),
  rs3456_geno = sample(c(c("0/0", "0/1", "1/1"), NA),
                       12, replace = TRUE,
                       prob = c(0.45, 0.35, 0.15, 0.05)),
  rs7890_geno = sample(c("0/0", "0/1", "0/2", "1/3", "2/2", NA),
                       12, replace = TRUE,
                       prob = c(0.3, 0.25, 0.15, 0.1, 0.15, 0.05)),
  rs2468_geno = sample(c("0|0", "0|1", "1|1", "1|2", NA),
                       12, replace = TRUE,
                       prob = c(0.3, 0.35, 0.2, 0.1, 0.05)),

  # Phenotype columns for bar plots
  Age = sample(25:75, 12, replace = TRUE),
  BMI = round(rnorm(12, mean = 26, sd = 4), 1),
  Insulin = round(rnorm(12, mean = 12, sd = 3), 1)
)

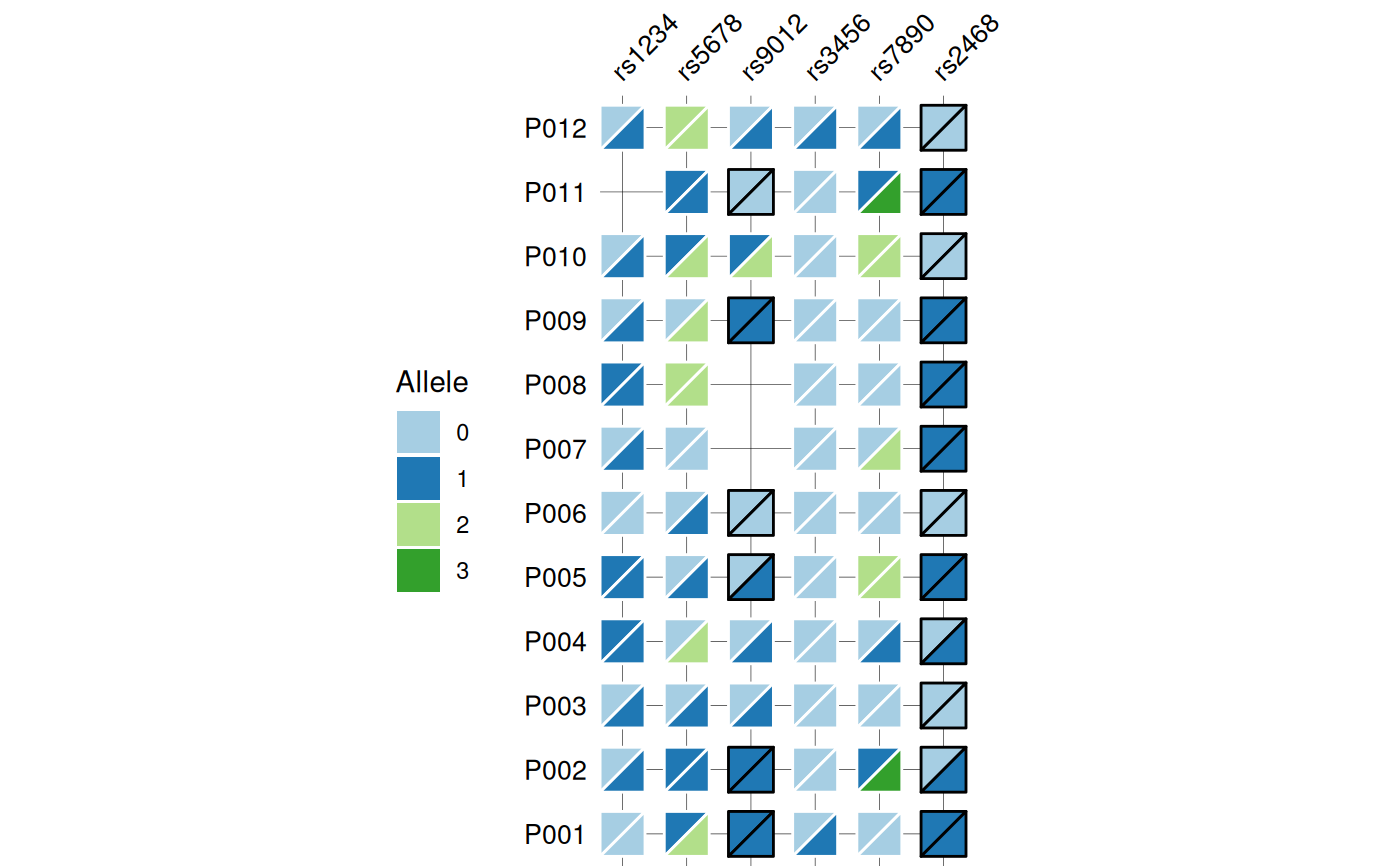

# Base genotype plot
gg_geno(
  data = snp_data,
  id = "id",
  geno = "_geno$"
)
#> Recommended dimensions: 4.4 x 6.3 inches

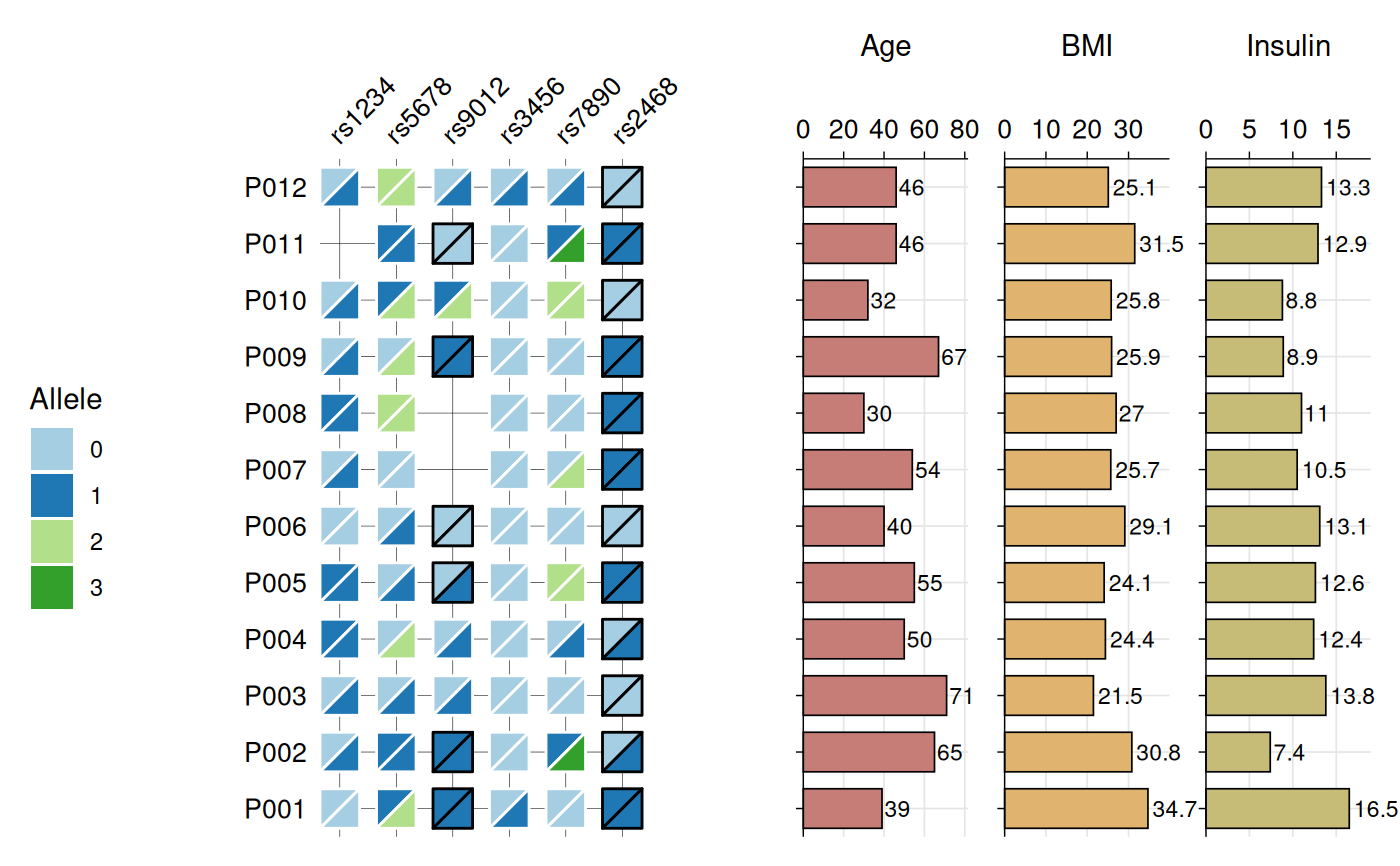

# Show optional barplots
gg_geno(
  data = snp_data,
  id = "id",
  geno = "_geno$",
  show_legend = TRUE,
  panel_ratio = 1,
  bar_column = c("Age", "BMI", "Insulin"),
  bar_fill = c("#c77d77", "#e0b46e", "#c7bc77"),
  text_size = 10
)
#> Recommended dimensions: 10.4 x 6.3 inches
